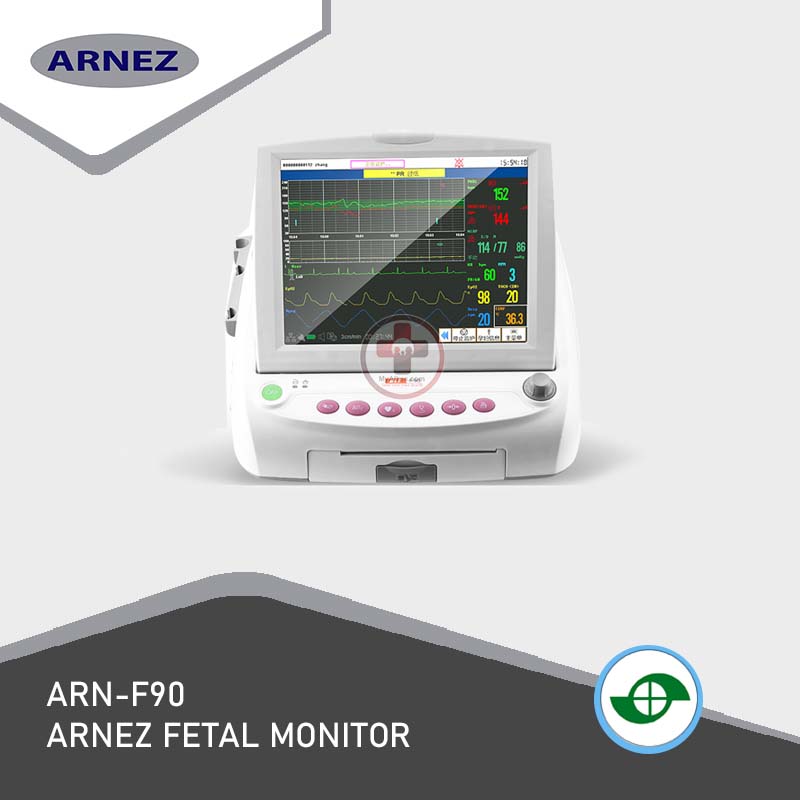

Maternal & Fetal Monitor with Trolley ARN F90

• To monitor the mother and fetus during pregnancy

• 12" TFT color screen

• Includes a large capacity lithium-ion rechargeable battery

• Built-in Z-Fold paper thermal printer with adjustable distance and speed

• Built-in CTG analysis system

• Can monitor both the mother and fetus simultaneously

• Functions to monitor twin babies and has a clinical event marking function

• Supports connection to a central monitoring system

• Multiple display interfaces can be easily configured

• Comes with a trolley for mobility

• Screen: 12.1 inch color LCD TFT, foldable up to 70 degrees

• Power source: AC 100V - 240V, 50Hz/60Hz

• Battery: 11.1V/4000mAH lithium-ion battery

• Recorder: 152mm Z-Folded thermosensitive paper

• FHR measurement method: Ultrasound pulsed Doppler

• FHR measurement range: 50bpm - 210bpm

• TOCO measurement method: Strain gauge sensor element

• ECG: Lead mode: 3/5 leads ECG input

• ECG: Lead selection: I, II, III, aVR, aVl, aVF, V

• HR measurement range: 10 bpm to 300 bpm

• PR measurement range: 20 bpm to 250 bpm

• RESP measurement method: Thoracic impedance

• NIBP measurement method: Automatic Ascilometry

• SpO2 measurement range: 0% to 100%
